Below Ground Tanks - Large
Product Description:

Potable Water, Rainwater, Grey, Toilet and Elsan® Waste and Slurry.

These rotationally moulded underground tanks are designed for use in industrial, agricultural, commercial and domestic applications.

Typical uses include grey water (sink, showers, baths); black water (toilets), Elsan® toilet and cesspool waste; rainwater harvesting; surface water collection and potable water storage (where mains water is not available).

Manufactured from UV-stabilised, medium density polyethylene (MDPE) and with a potable approved polymer (for WRAS applications) these tanks are designed with a ribbed construction for added strength and allow contents to be captured for many purposes.

Find out how these tanks can help your business.

CONTACT US
Technical Data

Please note: tank sizes quoted are subject to a +/-3% variation.

Tank
Name

Volume*
litres / gallons

Application

Length
(mm)

Width
(mm)

Height
(mm)

PS-VTP-28

280 / 62

Potable water

-

600 diameter

1000

PS-VTR-28

280 / 62

Waste water

-

600 diameter

1000

PS-VTP-50

500 / 121

Potable water

-

600 diameter

2000

PS-VTR-50

500 / 121

Waste water

-

600 diameter

2000

PS-VTP-80

800 / 176

Potable water

-

1000 diameter

1020

PS-VTR-80

800 / 176

Waste water

-

1000 diameter

1020

PS-VTP-110

1100 / 242

Potable water

-

1000 diameter

1400

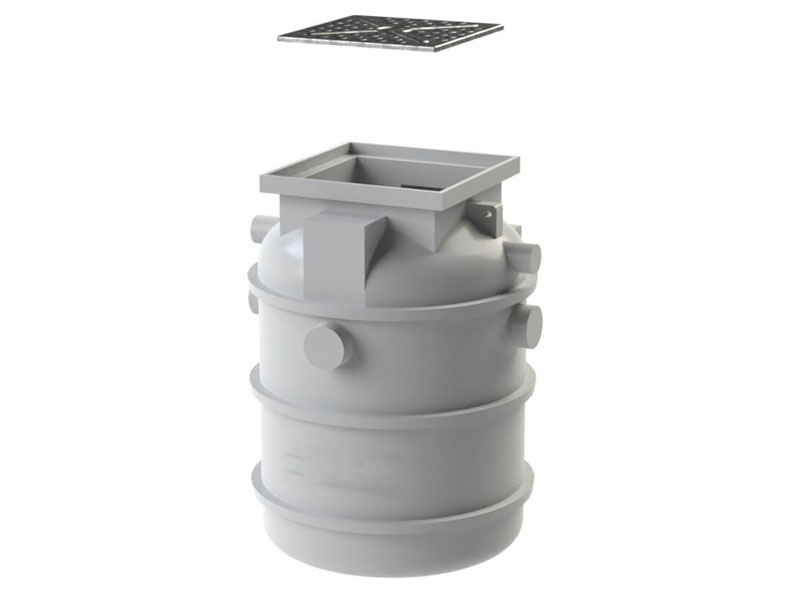

PS-VTR-110

1100 / 242

Waste water

-

1000 diameter

1400

PS-VTP-140

1400 / 308

Potable water

-

1000 diameter

1800

PS-VTR-140

1400 / 308

Waste water

-

1000 diameter

1800

PS-VTP-170

1700 / 374

Potable water

-

1000 diameter

2350

PS-VTR-170

1700 / 374

Waste water

-

1000 diameter

2350

PS-VTP-200

2000 / 440

Potable water

-

1000 diameter

2900

PS-VTR-200

2000 / 440

Waste water

-

1000 diameter

2900

PS-VTP-500

5000 / 1101

Potable water

2480

2030

2388

PS-VTR-500

5000 / 1101

Waste water

2480

2030

2310

PS-VTP-1000*

10,000 / 2202

Potable water

TBC

TBC

TBC

PS-VTR-1000*

10,000 / 2202

Waste water

TBC

TBC

TBC

*Available ca. Sept 2022

New tooling in manufacture

.

.

.

.

* Do not lift with liquid contents on board.

Product Information

Technical Advantages

PS-VTP range of potable water tanks are WRAS & DWI (Reg 31) approved
WRAS = Water Regulations Advisory Scheme
DWI = Drinking Water Inspectorate
Potable water tanks are supplied with a plastic, non-vented lid for compliance with WRAS and DWI.
VTP tanks are supplied with plastic lids, which are rated for pedestrian "traffic" only.
Where potable water is required for heavy "traffic" areas, the VTP tank is installed with its standard plastic lid underneath a rated manhole cover.
PS-VTR range is suitable for rainwater, slurry, cesspool, mains flushing toilet, grey water and Elsan waste
Galvanised steel lid with a 10-tonne rating is standard for all VTR tanks (apart from 280 & 550 litre tanks)
A 10-tonne galvanised lid with a double seal is available as an option.

Manufactured in the UK
Multiple ribs for added strength
One piece construction - no sub-assembly required, reducing installation time and effort
Optional turrets for housing control sets or where tank is installed deeper underground
Supplied in an opaque white "natural" colour
Manufactured from UV-stabilised, medium density polyethylene (MDPE) and with a potable approved polymer (for WRAS applications)

Applications

Residential, commercial, industrial, agricultural
Landscape, horticultural, park watering
Watering systems for groundskeepers, sports stadia
Irrigation, wash down facilities
Waste storage station - Elsan® toilet waste, cesspool
Portable toilet industry waste storage

Notes

Installation: to be installed on a firm, flat, fully supporting, concrete base of:
- 4" depth for tanks up to 2500 litres, 6-8" depth for tanks from 2500 - 10,000 litres.
Inspection & testing: all tanks are thickness tested by ultrasound after de-moulding. Flanges are air-tested for leaks.
Lifting: larger tanks (e.g. from 5000 litres upwards) have inbuilt lifting lugs. Note: these are only rated to lift the tank when empty.

Upgrade Kits

Manhole covers - Double seal - 10 Tonne rating.
Turrets for housing control equipment / weir housing or where tank is being installed deeper underground
