Above Ground Tank - Horizontal
Product Description:

If you need to transport liquids or require additional liquid storage at your premises, these Above Ground (Horizontal) Storage Tanks are the ideal solution. With WRAS-approval (black material only), these tanks are available in 5,000, 10,00 and 13,000 litres sizes, all specified to carry liquids up to a specific gravity of 1.5 (e.g. slurry). By linking tanks together you can create exactly the storage volume you require.

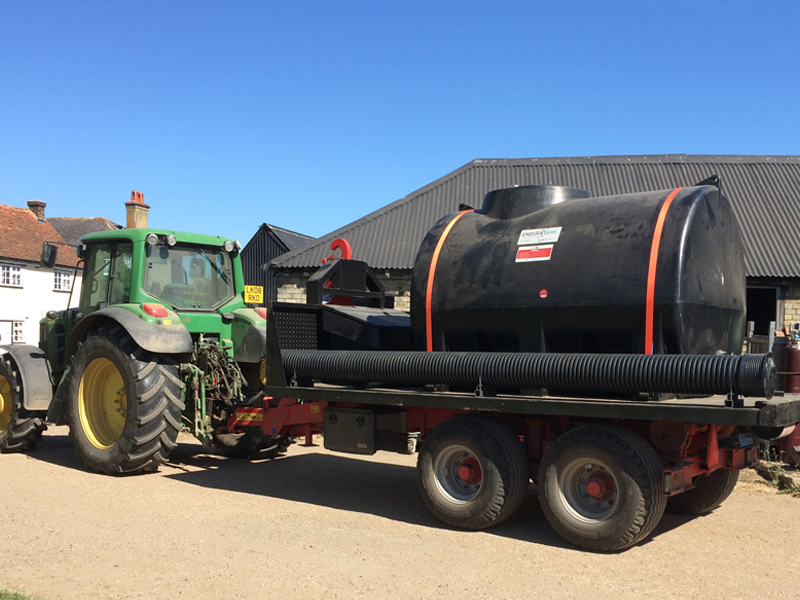

Applications will include emergency back-up drinking water supply through to temporary water supply at festivals and/or the storage of toilet effluent until it can be disposed of at the treatment works. For the transport of liquids, these horizontal tanks come fitted with inbuilt anti-surge baffles and pin mounting points to fasten to your vehicle. A metal mounting frame can also be specified, with or without a mounting plate to accept a suitable pump. A range of drainage options is available: from 2" to 4" ball valves and typically using threaded BSP fittings with camlock or Bauer connectors.

Find out how the Large - Horizontal Range can help your business.

CONTACT US
Technical Data

Please note: tank sizes quoted are subject to a +/-3% variation.

Volume*
(litres)

Volume
(gallons)

Height
(mm)

Length
(mm)

Diameter
(mm)

Weight
(KGs)

Lifting
Points

Lid Size
(mm)

WRAS
Approved

5,000

1,101

1,690

2,500

1,700

250

2

620

Yes

10,000

2,203

1,800

4,200

1,900

550

2

620

Yes

13,000

2,863

2,200

4,200

1,900

690

2

620

Yes

* Do not lift with liquid contents on board.

Product Information

Technical Advantages

Built in lifting points
Flat base for stability - mount on a flat surface without support
Pin mounting system for affixing to vehicle, trailer or frame without the need for mounting straps
Heavy weight material
Built in surge baffles to increase stability and reduce surge/slosh during transportation
620mm vented tank lid
PRODUCT WARRANTY: 10 YEARS SUBJECT TO NORMAL WEAR, TEAR AND USAGE CONDITIONS

Applications

Liquid transport: can be used for transport of liquids up to specific gravity of 1.5 (up to liquid fertiliser to molasses)
Water bowser hire for clean water supply
Potable water for public events (black, boat blue or natural coloured tanks only - boat blue and natural may incur price uplift from black)
Static storage: bulk storage for water/ waste (e.g. toilet waste) for static use by the toilet servicing industry
Used in construction and civil engineering environments where mains supply is not available
Dust suppression
Sprayer tank for agricultural purposes
Storage of AdBlue
Construction and civil engineering environments where mains supply is not available
Mixer tank
Waste carriers' premises

Upgrade Kits

2" Linking kit with 2” x 2" Drain valves and 1m Linking hose
3" Linking Kit with 2 x 3” Drain valves and 1m Linking hose
2", 3" and 4" bulkhead fittings in stainless steel
2", 3" and 4" ball valves to connect with a range of hose connectors / adaptors
2", 3" and 4" hose adaptors / connectors - typically camlock and/or Bauer
Galvanised mounting frames, with or without pump mounting plate
Baffle balls to further reduce slosh and surge during transport
Mushroom vents when filling or evacuating tanks with > 500 litres/minute

Warnings

Consider bunded tanks to avoid spillages
Industrial tanks can be made with increased wall thickness catering for specific gravities of contents between 1SG - 2SG
Delivery on a 44 foot articulated lorry
It is the customer’s responsibility to offload - otherwise a HIAB or fork-lift enabled truck may be required
Delivery is kerbside only - the delivery driver is not indemnified to install the product
Only lift or move when empty
PLEASE CONSULT OUR LITERATURE ON CORRECT INSTALLATION OF TANKS: PAY PARTICULAR ATTENTION TO THE BASE REQUIRED TO SUPPORT THE TANK WHEN FULL - WE RECOMMEND A CONCRETE BASE
Tank base should be a minimum of (600mm) (24") larger than the diameter of the tank and should have a minimum depth of:
102mm (4") for tanks up to 2,500 litres
152mm (6") for tanks 4,000 litres to 10,000 litres
204mm (8") for tanks over 10,000 litres
